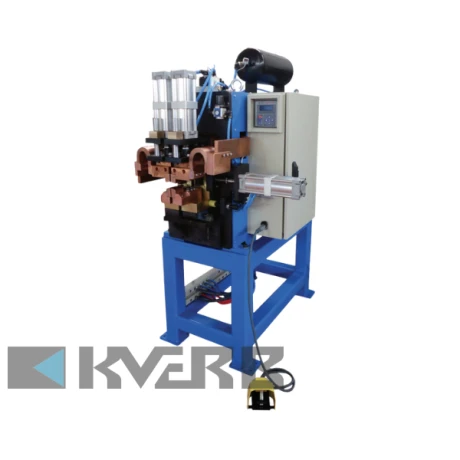

Spot welding machine PL120Y

Spot welding machine PL120Y is powerful industrial equipment designed for high-precision welding work. It ensures effective and quality joining of metal parts thanks to its high power and advanced welding technologies. Intuitive controls and a reliable design make this machine ideal for seamless operation in serial production conditions.

PL120Y is used for performing butt welding, a key process in the production of metal structures, automotive body parts, metal furniture, and household appliances. It is suitable for welding steel, stainless steel, and other metal parts of varying thickness, providing strong and durable connections.

This machine will become an indispensable tool for enterprises in the following industries:

Automotive industry: Manufacturing of body parts, frames, and load-bearing structures.
Metal furniture: Production of frames and joining metal elements.
Construction: Creation of metal structures, connection of profiles and frames.
Household appliance manufacturing: Welding of enclosures and parts made of stainless steel.

Technical specifications:

Nominal power (50% duty cycle): 120 kVA
Continuous power (100% duty cycle): 85 kVA
Primary voltage: 400 V
Frequency: 50 – 60 Hz
Secondary circuit voltage: 7 - 8.5 V
Fuse current: 250 A
Secondary short-circuit current: 32 kA
Number of power adjustment levels: 1
Electrode stroke: 50 mm
Electrode pressure: 150 – 760 kg
Air pressure: 3 – 8 bar
Impact frequency: 30 impacts/min
Cooling water pressure: 5 bar
Cooling water flow: 6 l/min
Maximum welding thickness for mild steel: 4 mm + 4 mm
Maximum welding thickness for stainless steel: 3 mm + 3 mm
Dimensions (L×W×H): 1800 x 1200 x 2000 mm
Weight: 975 kg

Advantages and features:

High productivity: 120 kVA power allows for welding thick metals, ensuring strong welds.
Energy efficiency: Reduced energy consumption thanks to optimized operating mode.
Safety of operation: Equipped with emergency stop buttons, overheating protection, and safety sensors.
Durability: The body and working elements are made of high-quality materials, ensuring stable operation in challenging conditions.
Convenient operation: The intuitive touchscreen makes it easy to adjust working modes.

You can buy the spot welding machine PL120Y from KVERB.
We offer:
Delivery in Ukraine.
Official warranty and technical support.
Professional consultation to help you choose the right equipment for your needs.
Contact our managers now to get the best offer on the spot welding machine PL120Y!
