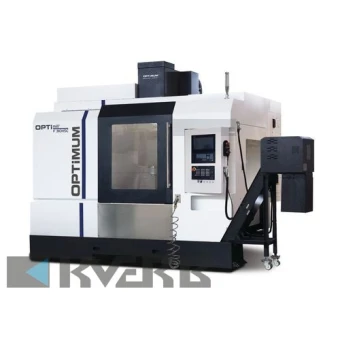

CNC milling machining center OPTImill F 600HSC

CNC milling machining center OPTImill F 600HSC is modern equipment designed to perform complex metalworking tasks. The robust construction and the use of finite element analysis ensure reliability and stability. Guides with roller circulation guarantee high load capacity and smooth movement, while the spindle with internal cooling allows for high-precision work.

The milling center is ideal for mechanical engineering enterprises requiring high-precision machining of metal products. Its construction and functionality meet the demands of modern production.

Technical specifications:
Traverse speed along X/Y/Z axes 24000/24000/24000 mm/min.
Connection voltage 400 V.
Network frequency 50 Hz.
Total power consumption 35 kVA.
Table length 1900 mm.
Table width 800 mm.
Minimum distance between spindle and table 180 mm.
Maximum distance between spindle and table 980 mm.
T-slot size 22 mm.
Number of T-slots 5.
Distance between T-slots 160 mm.
Maximum table load capacity 1300 kg.
Repeatability ±0.005 mm.
Positioning accuracy ±0.005 mm.

Advantages and features:
The robust torsion-resistant construction ensures equipment durability.
Roller guides on all axes guarantee high load capacity and smooth movement.
The high-performance spindle with a rotational speed of 20 bar and internal cooling improves machining quality.
The milling table with five T-slots and precision grinding provides convenience for workpiece clamping.
The chip removal conveyor with two screws and a belt mechanism increases workspace cleaning efficiency.
The enclosed control system with a heat exchanger protects against contamination and maintains stable temperature.
The electronic handwheel with an emergency button makes machine operation convenient and safe.

You can purchase the CNC milling machining center OPTImill F 600HSC from the company KVERB.
We offer:
Delivery across Ukraine.
Official warranty and technical support.
Professional consultation to select the equipment that suits your needs.
Contact our managers right now to get the best offer on the CNC milling machining center OPTImill F 600HSC.
