Combined Saw/Spindle Moulder KPFN 300A
SKU 1907001
0 reviews
In stock
ROJEK
Shipping
- Pickup (Self-pickup) (For free)
- New POST (Up to 100 UAN)
- Meest (Up to 100 UAN)
Payment
- Payment upon receipt
- Cash payment
- Payment by bank details
The ROJEK KPFN 300A Combined Saw/Spindle Moulder is a heavy-duty industrial machine that merges the capabilities of a panel saw and a spindle moulder into one robust unit. Weighing 595 kg and powered by three independent motors (two 4.4 kW main motors and a 0.75 kW scoring motor), this machine delivers uncompromising power and precision. It is the ultimate space-saving solution for professional workshops requiring versatility without sacrificing performance.

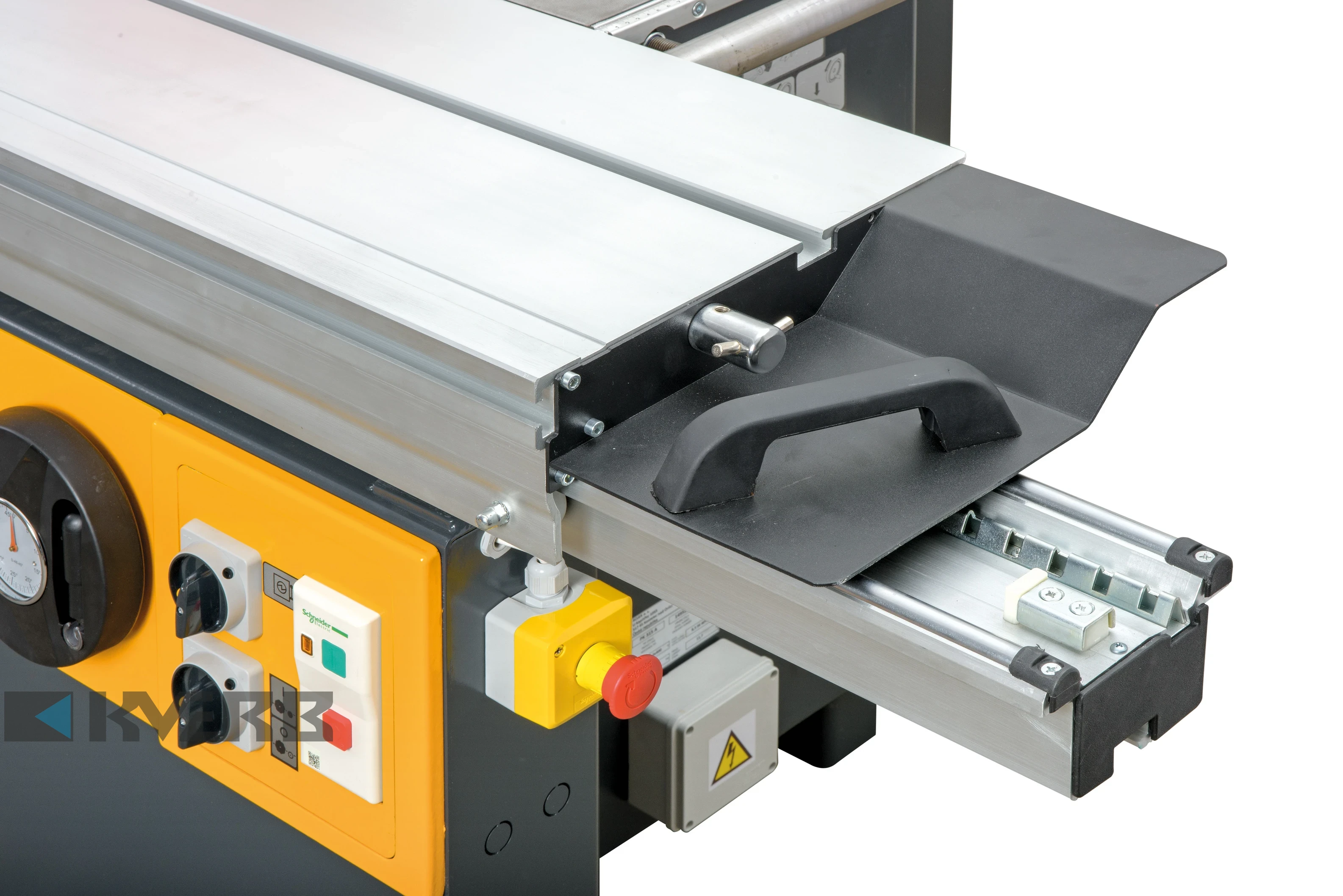

The machine is designed for precise cutting of panel materials and solid wood, featuring a dedicated scoring unit for chip-free results. The spindle moulder unit offers exceptional versatility with a tilting range from -5° to +45° and five speed settings. The long aluminum sliding table CV 360T (2800 or 3200 mm) allows for effortless handling of large-format sheets and heavy timber.
The machine is suitable for:
Furniture manufacturers and professional joinery shops Workshops producing windows, doors, and stairs Facilities needing high-performance multifunctional equipment
Technical Specifications: Motors: 2 x 4.4 kW (saw and moulder) + 0.75 kW (scoring) Max saw blade diameter 315 mm (with 120 mm scoring blade) Max cutting height 102 mm Saw blade tilting 0° – 45° Spindle tilting -5° + 45° Spindle diameter 30 mm (options 32, 35, 40, 50 mm) Five spindle speeds 2500 – 10000 rpm Length of cut 2800 mm (optionally 3200 mm) Compatible with DADO blades Net weight 595 kg
Advantages: Combination of two industrial-grade machines in one footprint Unique negative spindle tilt (-5°) for advanced moulding techniques Independent scoring motor for perfect cuts on laminates High power output with separate motors for each function Robust construction ensures stability and precision
You can buy the ROJEK KPFN 300A Combined Saw/Spindle Moulder at KVERB. We offer: Delivery across Ukraine Official warranty and technical support Expert advice on choosing equipment that suits your tasks
Contact our managers right now to get the best offer on the ROJEK KPFN 300A Combined Machine for your production!
The machine is designed for precise cutting of panel materials and solid wood, featuring a dedicated scoring unit for chip-free results. The spindle moulder unit offers exceptional versatility with a tilting range from -5° to +45° and five speed settings. The long aluminum sliding table CV 360T (2800 or 3200 mm) allows for effortless handling of large-format sheets and heavy timber.
The machine is suitable for:
Furniture manufacturers and professional joinery shops Workshops producing windows, doors, and stairs Facilities needing high-performance multifunctional equipment
Technical Specifications: Motors: 2 x 4.4 kW (saw and moulder) + 0.75 kW (scoring) Max saw blade diameter 315 mm (with 120 mm scoring blade) Max cutting height 102 mm Saw blade tilting 0° – 45° Spindle tilting -5° + 45° Spindle diameter 30 mm (options 32, 35, 40, 50 mm) Five spindle speeds 2500 – 10000 rpm Length of cut 2800 mm (optionally 3200 mm) Compatible with DADO blades Net weight 595 kg
Advantages: Combination of two industrial-grade machines in one footprint Unique negative spindle tilt (-5°) for advanced moulding techniques Independent scoring motor for perfect cuts on laminates High power output with separate motors for each function Robust construction ensures stability and precision
You can buy the ROJEK KPFN 300A Combined Saw/Spindle Moulder at KVERB. We offer: Delivery across Ukraine Official warranty and technical support Expert advice on choosing equipment that suits your tasks
Contact our managers right now to get the best offer on the ROJEK KPFN 300A Combined Machine for your production!
Specifications Combined Saw/Spindle Moulder KPFN 300A
- Max. planing/cut/width, mm 1050 mm (Saw), 200 mm (Spindle above table)
- Spindle length, mm 130 mm (110)
- Max spindle stroke, mm 140 mm
- Max tool diameter above the table, mm 200/250 mm
- Max tool diameter under the table, mm 175 mm
- Table size, mm 500×1355 mm
- Length of sliding table, mm 2800(3200)×360 mm
- Length of cut, mm 2800(3200) mm
- Net weight, kg 595 kg
- Motor Power, kW 2×4.4 kW/S6-3f
- Scoring unit motor power, kW 0.75 kW/S6
- Main motor speed, rpm 3755(4506−60 Hz) rpm (Saw)
- Max. saw blade diameter, mm 30 mm (Saw), 30 mm (Spindle)
- Max. depth of cut, mm 102 mm (90∘), 71 mm (45∘) (Saw)
- Saw blade tilting 0∘−45∘ (Saw), −45∘/+5∘ (Spindle)
- Scoring spindle diameter, mm 0∘−45∘ (Saw), −45∘/+5∘ (Spindle)
- Scoring unit speed, rpm 8530(50 Hz) rpm, 10236(60 Hz) rpm
- Scoring blade diameter, mm 8530(50 Hz) rpm, 10236(60 Hz) rpm
- DADO diametr 120 mm
