Band saw machines Pilous ARG 300 CF-NC automat

Band saw machine Pilous ARG 300 CF-NC automatic is a highly efficient tool with CNC control, designed for cutting metal workpieces in large batches. It is ideal for processing materials with large cross-sections and heavy parts. This machine guarantees high productivity and accuracy in the most demanding production conditions.

The Pilous ARG 300 CF-NC automatic is used by enterprises engaged in serial production of metal products. It is perfect for industries such as mechanical engineering, metalworking, metal structure production, and other high-load industries. The machine ensures stable operation and cutting accuracy in high-volume production and with a wide range of materials.

Technical specifications:
Control type: CNC system for automatic and semi-automatic cutting control
Operating modes: Automatic, semi-automatic, manual
Feed speed: Adjustable feed speed in the range of 27, 42, and 50 mm/s, allowing adjustment to material size and weight
Maximum feed length: 500 mm per cycle
Saw speed: Adjustable saw speed with a frequency converter in the range of 15 to 90 m/min
Construction: Massive cast iron structure to minimize vibrations and increase accuracy
Cooling type: Built-in cooling system with adjustable liquid flow on water guides and other key parts

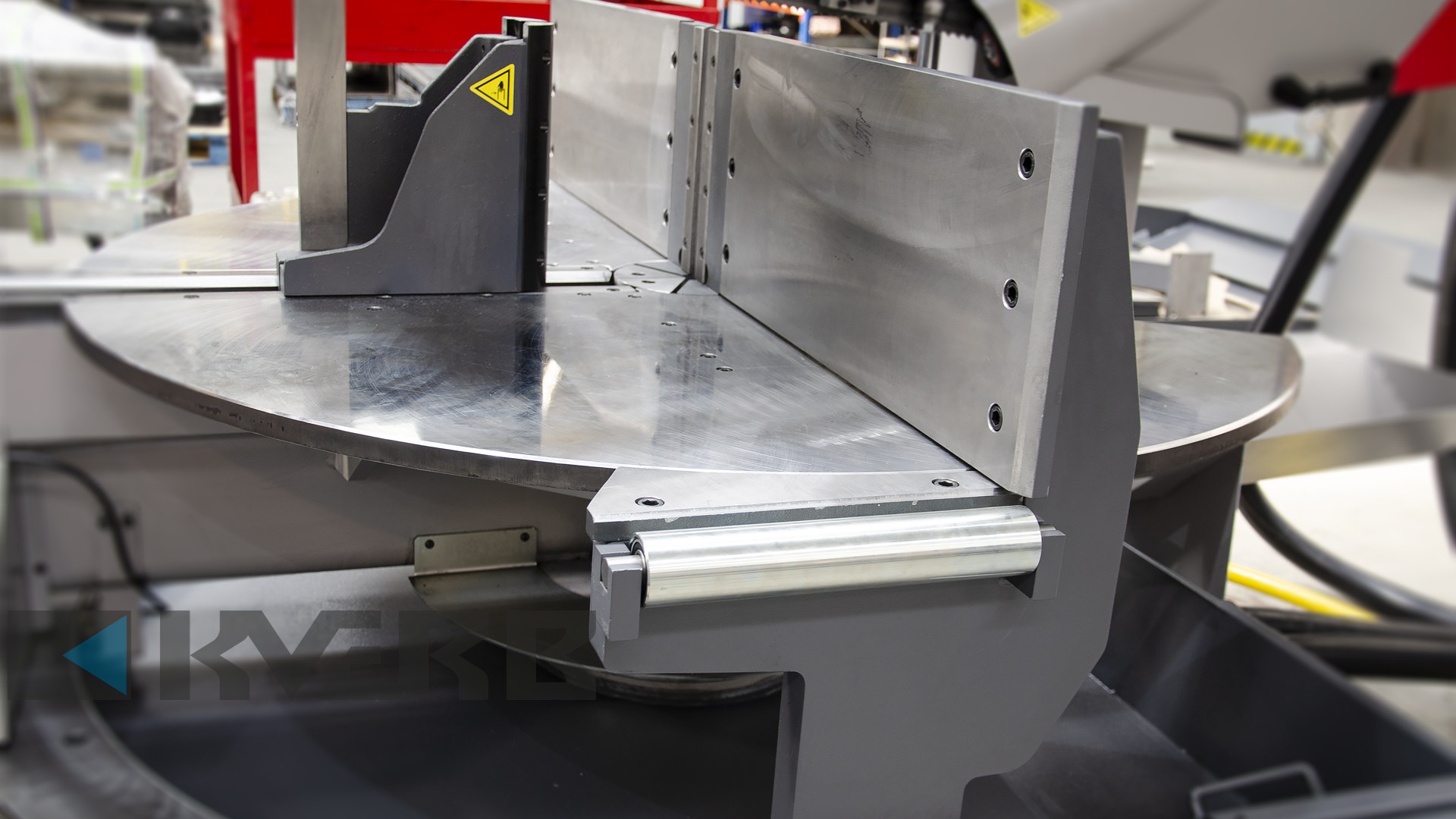

Angle cutting: Smooth adjustment of cutting angle from 90° to 45°
Materials: Works with stainless steel and tool steels
Hydraulic control: Hydraulic clamping device with smooth pressure regulation for precise material feed, including work with uneven and hard workpieces
Equipment: Saw bands 27 x 0.9 mm for various types of metals

Advantages and features:
Maximum precision and speed: Servo drive and new control system provide high material feeding precision and cutting speed, even with multiple feeds
Flexibility in settings: Ability to program up to 60 operations for quick adjustment of feed length in serial production, reducing reconfiguration time
Reliability and durability: Sturdy cast iron construction and reinforced feed system ensure reliable operation and long service life
Enhanced safety: Saw tension control system and automatic shutdown in case of saw breakage ensure safe operation and prevent equipment damage
Convenient control: Central panel with a 7.5-inch touchscreen provides an intuitive interface for controlling all machine functions
Optimized cooling: Cooling system with adjustable flow extends saw blade life and minimizes risks of overheating and excessive wear
