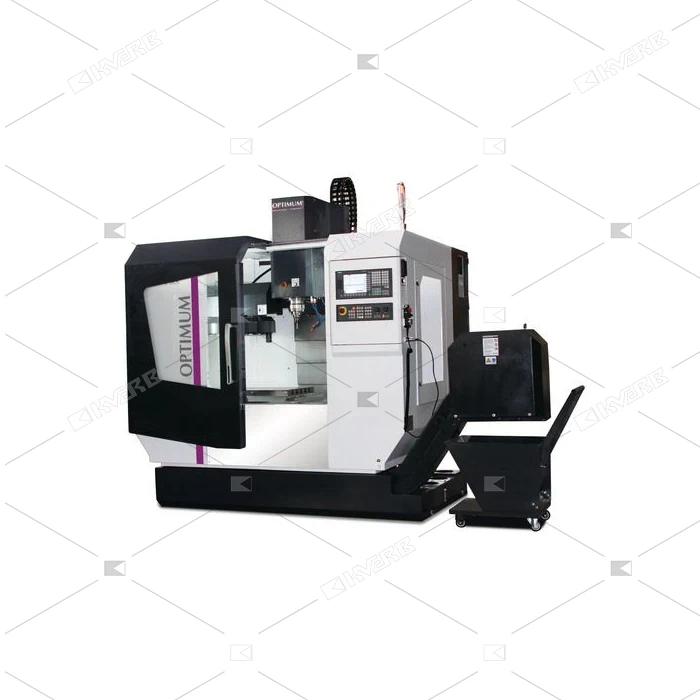

CNC milling machining center OPTImill F 150E

CNC milling machining center OPTImill F 150E is reliable equipment for performing precise milling operations. It is equipped with a 16-position carousel tool magazine, which speeds up the tool change process. The robust construction and precision-machined milling table ensure stable operation even under intensive loads. The SINUMERIK 808D ADVANCED control system simplifies programming and setup, making the machine easy to use.

This milling center is suitable for enterprises engaged in processing complex metal parts. It efficiently handles milling, drilling, and other operations thanks to its high traverse speed and precision. Automatic central lubrication and a well-thought-out door design minimize maintenance time, ensuring comfortable operation.

Technical specifications:
Drilling and milling performance:
Maximum cutter head size: 80 mm
Maximum end mill size: 38 mm
Rapid traverse speed:
X/Y/Z axis: 20,000 mm/min
Electrical data:
Connection voltage: 400 V
Network frequency: 50 Hz
Total connected power: 15 kW

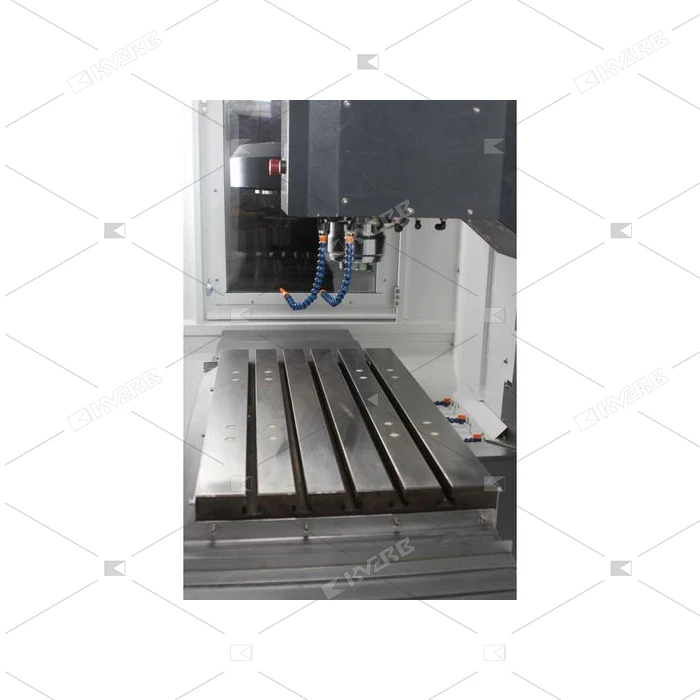

Horizontal milling table:
Length: 900 mm
Width: 500 mm
Minimum distance between spindle and table: 100 mm
Maximum distance between spindle and table: 600 mm
T-slot size: 18 mm
Number of T-slots: 5
Distance between T-slots: 80 mm
Maximum load capacity: 350 kg
Accuracy:
Repeatability: ±0.008 mm
Positioning accuracy: ±0.008 mm

Advantages and features:

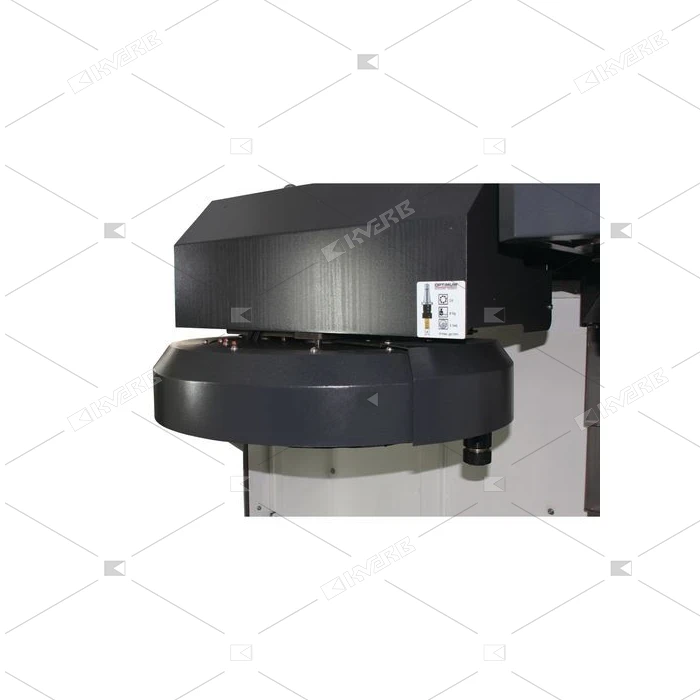

The 16-position carousel tool magazine accelerates tool changes.
The SINUMERIK 808D ADVANCED control system simplifies usage and setup.

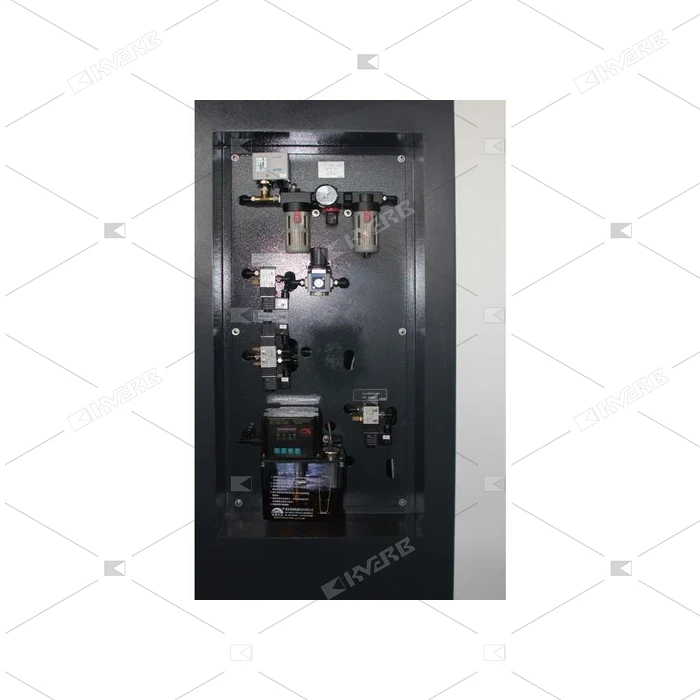

Automatic central lubrication reduces maintenance time.
The cooling system with a 190-liter tank supports stable operation.
The milling table with high load capacity and precision machining is suitable for complex tasks.
The chip conveyor and waste cart simplify maintenance.

You can purchase the CNC milling machining center OPTImill F 150E from the company KVERB.
We offer:
Delivery across Ukraine.
Official warranty and technical support.
Professional consultation to select the equipment that suits your needs.

Contact our managers right now to get the best offer on the CNC milling machining center OPTImill F 150E!
