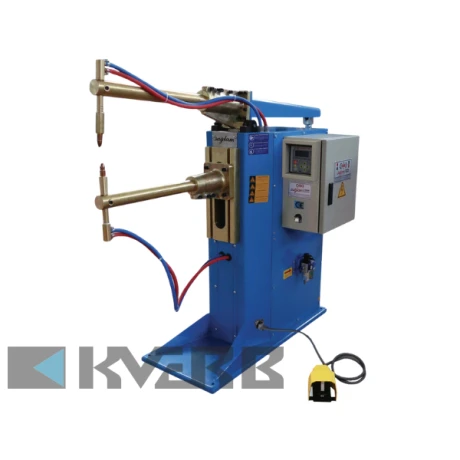

Spot welding machine PU045

Spot welding machine PU045 is designed for fast and reliable spot welding of metal parts. Thanks to its upper lever mechanism, this machine allows working with large and thick metal workpieces, providing high-quality and strong welds.

This machine is used in production processes where precise and durable spot welding is required. It is effectively used in:
Automotive industry – for welding body parts, frames, and structural components
Metal structure manufacturing – for creating strong and reliable connections
Furniture manufacturing – in the production of metal frames and structural elements
Shipbuilding and aerospace industry – for welding critical joints subjected to high loads
Electrical industry – for joining thin sheet metal in electrical structures

The PU045 spot welding machine is the perfect solution for metalworking enterprises, auto repair shops, metal structure factories, and companies working with steel and stainless steel welding.

Technical specifications:
Nominal power (50% duty cycle) – 45 kVA
Continuous power (100% duty cycle) – 30 kVA
Rated voltage – 400 V
Frequency – 50-60 Hz
Secondary voltage – 4.5-6 V
Fuse current – 100 A
Secondary short-circuit current – 23 KA
Number of adjustment steps – 1
Electrode stroke – 60 mm
Electrode pressure force – from 50 kg to 325 kg
Working air pressure – 3-8 bar
Column length – 630 mm
Cooling water pressure – 5 bar
Cooling water consumption – 6 l/min
Maximum welding material thickness (mild steel) – 3 mm + 3 mm
Maximum welding material thickness (stainless steel) – 2 mm + 2 mm
Dimensions (W x D x H) – 700 x 1350 x 1350 mm
Weight – 325 kg

Key advantages:
High power and performance with a nominal power of 45 kVA and continuous power of 30 kVA, ensuring stable and efficient welding under heavy conditions
Precision and weld quality without overheating and material deformation
Upper lever mechanism for working with large and thick metal parts
Adjustable welding parameters, including electrode pressure, secondary voltage, and working air pressure
Sturdy and durable construction made of high-strength materials for long-term use
Water cooling system to prevent overheating and increase equipment lifespan
Ergonomic control for improved work efficiency
