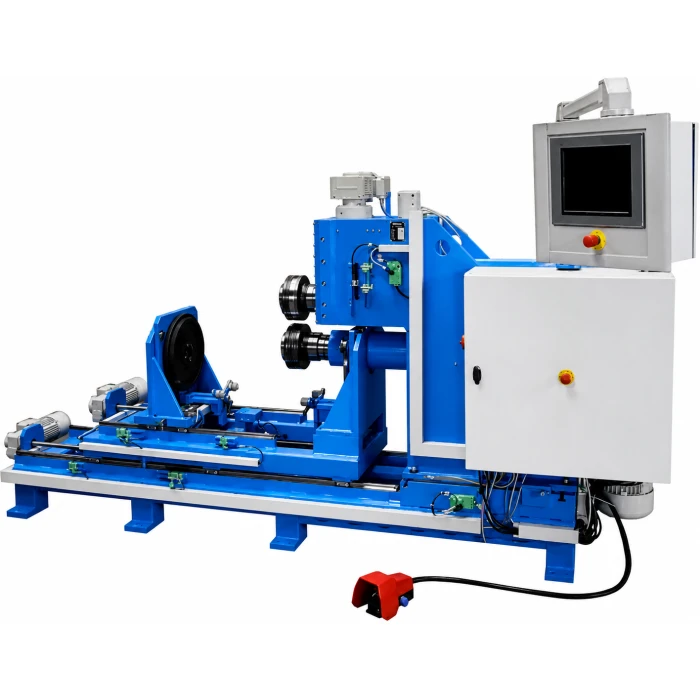

Bead roller Prinzing SME 200/7 P
SKU 0506-555-64
0 reviews
In stock
PRINZING
0 uah.
Shipping
- Pickup (Self-pickup) For free
- New POST Up to 100 uan
- Meest up to 100
Payment
- Оплата при отриманні
- Готівкова оплата
- Оплата по рахунку
Bead roller Prinzing SME 200/7 P is reliable industrial equipment for bending and forming sheet metal up to 7 mm thick. The construction is made of welded steel, and installation on a stand ensures stability and durability during intensive operation. The model is ideal for precise work with large blanks.
The machine is widely used in pipeline construction, metalworking, and related industries. It is effective in creating grooves, profiles, and other formed elements where high precision and stable quality are required.
Technical specifications:
Type of drive: two-speed or stepless electric motor
Control: dual foot pedal with reverse option
Upper shaft feed: parallel, with electric drive
Lower shaft adjustment: axial
Stop system: hardened stop plate and screw stop
Working shafts: ground, hardened, on roller bearings
Safety: automatic shutdown in case of emergencies
Electronics: PLC with touchscreen, up to 200 programs
Distance between rollers: 200 mm
Working depth: 750 mm
Metal thickness: up to 7 mm
Advantages and features:
Performance suitable for serial and individual production
Precise speed control via foot pedal
Parallel feed ensures stable results
Sturdy welded frame reduces vibration and increases durability
Intuitive control with program memory and touchscreen display
Reliable safety system
You can purchase the bead roller Prinzing SME 200/7 P from the KVERB company.
We offer:
Delivery in Ukraine
Official warranty and technical support
Professional consultation to choose the equipment that suits your needs
Contact our managers right now to get the best offer on the bead roller Prinzing SME 200/7 P!
The machine is widely used in pipeline construction, metalworking, and related industries. It is effective in creating grooves, profiles, and other formed elements where high precision and stable quality are required.
Technical specifications:
Type of drive: two-speed or stepless electric motor
Control: dual foot pedal with reverse option
Upper shaft feed: parallel, with electric drive
Lower shaft adjustment: axial
Stop system: hardened stop plate and screw stop
Working shafts: ground, hardened, on roller bearings
Safety: automatic shutdown in case of emergencies
Electronics: PLC with touchscreen, up to 200 programs
Distance between rollers: 200 mm
Working depth: 750 mm
Metal thickness: up to 7 mm
Advantages and features:
Performance suitable for serial and individual production
Precise speed control via foot pedal
Parallel feed ensures stable results
Sturdy welded frame reduces vibration and increases durability
Intuitive control with program memory and touchscreen display
Reliable safety system
You can purchase the bead roller Prinzing SME 200/7 P from the KVERB company.
We offer:
Delivery in Ukraine
Official warranty and technical support
Professional consultation to choose the equipment that suits your needs
Contact our managers right now to get the best offer on the bead roller Prinzing SME 200/7 P!
Specifications Bead roller Prinzing SME 200/7 P
- Drive Type Electromechanical
- Metal processing thickness 7.00 mm
- Engine power 7.50 kW
- Working depth 750 mm
- Roll gauge 200 mm
- Working speed 0 - 20 m/min
- WEIGHT 2 800 kg
- LENGTH 2500 mm
- WIDTH 1300 mm
- HEIGHT 1900 mm
