Transport bracket with mounting plate
SKU 160830
0 reviews
In stock
SIEGMUND
Shipping
- Pickup (Self-pickup) (For free)
- New POST (Up to 100 UAN)
- Meest (Up to 100 UAN)
Payment
- Payment upon receipt
- Cash payment
- Payment by bank details
System: 16.
length:
100 mm
width:
100 mm
height:
25 mm
weight:
1.7 kg.

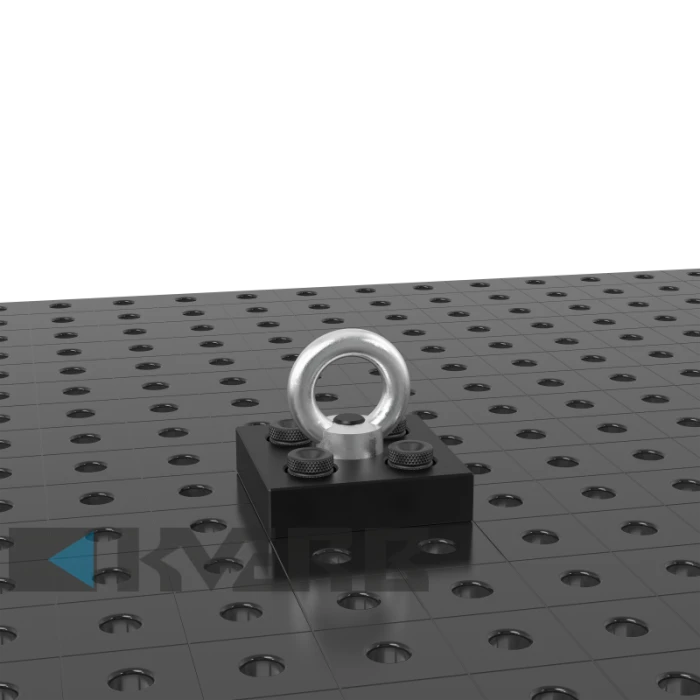

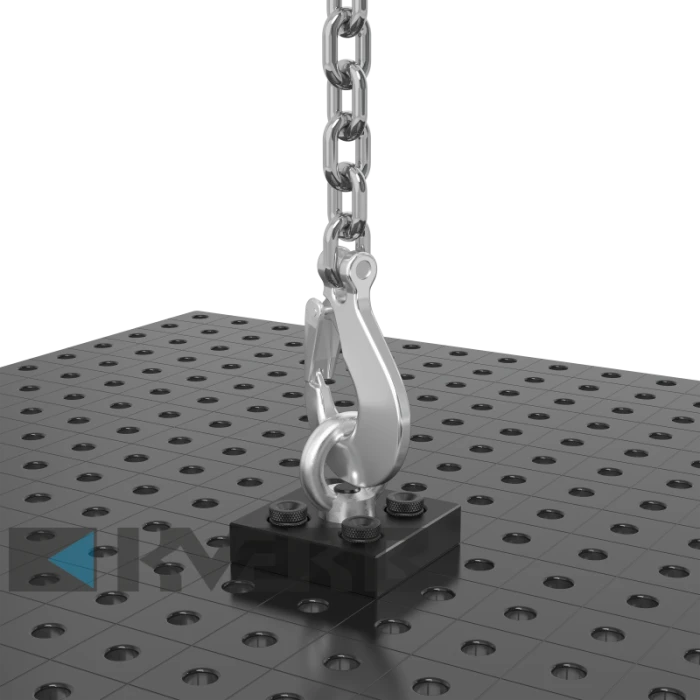

The transport bracket with mounting plate has a load capacity of 700 kg. It is used to move welding tables and other heavy elements of systems 16 and 28 easily and safely. The fastening is carried out using 4 system bolts.
When working with the transport bracket, general safety requirements must be observed. The load capacity is significantly reduced depending on the connection method. During transport, elements must not be lifted higher than 100 mm and no one must be under the elements being moved.
For safety reasons, we draw your attention to the following:
The eye bolt must be screwed in as far as it will go and have a flat support surface.
The length of the connecting thread must be sufficient.
Side thrust must be avoided.
- load capacity (with 4x 160511).
length:
100 mm
width:
100 mm
height:
25 mm
weight:
1.7 kg.
The transport bracket with mounting plate has a load capacity of 700 kg. It is used to move welding tables and other heavy elements of systems 16 and 28 easily and safely. The fastening is carried out using 4 system bolts.
When working with the transport bracket, general safety requirements must be observed. The load capacity is significantly reduced depending on the connection method. During transport, elements must not be lifted higher than 100 mm and no one must be under the elements being moved.
For safety reasons, we draw your attention to the following:
The eye bolt must be screwed in as far as it will go and have a flat support surface.
The length of the connecting thread must be sufficient.
Side thrust must be avoided.
- load capacity (with 4x 160511).
Specifications Transport bracket with mounting plate
- System 16
- WEIGHT 1.7
- LENGTH 100
- WIDTH 100
- HEIGHT 25
