CNC lathe machining center OPTIturn S 620L
SKU 1920093
0 reviews
In stock
STURMER
Shipping
- Pickup (Self-pickup) (For free)
- New POST (Up to 100 UAN)
- Meest (Up to 100 UAN)
Payment
- Payment upon receipt
- Cash payment
- Payment by bank details
CNC lathe machining center OPTIturn S 620L is reliable equipment with a robust structure and compact design. The 30° inclined bed allows efficient processing of large parts, ensuring convenient chip removal. Linear guides and hardened ball screws guarantee durability and precision. SIEMENS servomotors with integrated encoders enhance operational accuracy. Built-in automation and cooling systems make the machine convenient and efficient to operate.
The machine is intended for industrial enterprises where high productivity and reliability are essential for performing complex turning operations.
Technical specifications:
Working areas:
Turning length: 1020 mm
Height of the peak: 325 mm
Swing diameter over the bed: 650 mm
Swing diameter over the cross slide: 380 mm
Motor torque:
X axis: 11 Nm
Y axis: 6 Nm
Z axis: 16 Nm
Speed range: 0–4000 rpm
Electrical data:
Connection voltage: 400 V
Network frequency: 50 Hz
Total connected voltage: 20 kVA
Advantages and features:
The 30° inclined bed ensures convenience when processing large parts.
Linear guides and ground ball screws extend the equipment's service life.
SIEMENS servomotors with encoders maintain maximum operational accuracy.
A portable electronic handwheel simplifies control.
The chip conveyor and automatic lubrication system facilitate operation.
The cooling system and halogen lamp create comfortable working conditions.

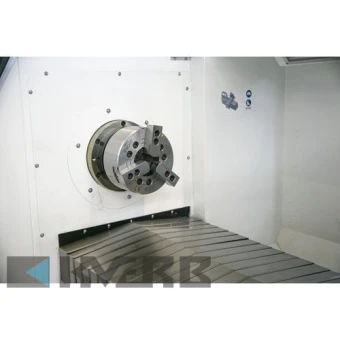

The hydraulic three-jaw chuck with a diameter of 200 mm and an additional chuck on the counter-spindle with a diameter of 150 mm expand the machine's functionality.
You can purchase the CNC lathe machining center OPTIturn S 620L from the company KVERB.
We offer:
Delivery across Ukraine.
Official warranty and technical support.
Professional consultation to select the equipment that suits your needs.
Contact our managers right now to get the best offer on the CNC lathe machining center OPTIturn S 620L!
The machine is intended for industrial enterprises where high productivity and reliability are essential for performing complex turning operations.
Technical specifications:
Working areas:
Turning length: 1020 mm
Height of the peak: 325 mm
Swing diameter over the bed: 650 mm
Swing diameter over the cross slide: 380 mm
Motor torque:
X axis: 11 Nm
Y axis: 6 Nm
Z axis: 16 Nm
Speed range: 0–4000 rpm
Electrical data:
Connection voltage: 400 V
Network frequency: 50 Hz
Total connected voltage: 20 kVA
Advantages and features:
The 30° inclined bed ensures convenience when processing large parts.
Linear guides and ground ball screws extend the equipment's service life.
SIEMENS servomotors with encoders maintain maximum operational accuracy.
A portable electronic handwheel simplifies control.
The chip conveyor and automatic lubrication system facilitate operation.
The cooling system and halogen lamp create comfortable working conditions.
The hydraulic three-jaw chuck with a diameter of 200 mm and an additional chuck on the counter-spindle with a diameter of 150 mm expand the machine's functionality.
You can purchase the CNC lathe machining center OPTIturn S 620L from the company KVERB.
We offer:
Delivery across Ukraine.
Official warranty and technical support.
Professional consultation to select the equipment that suits your needs.
Contact our managers right now to get the best offer on the CNC lathe machining center OPTIturn S 620L!
Specifications CNC lathe machining center OPTIturn S 620L
- Positioning accuracy 0.008
- Number of axes 2
- WEIGHT 6000
- LENGTH 4020
- WIDTH 3135
- HEIGHT 1950
