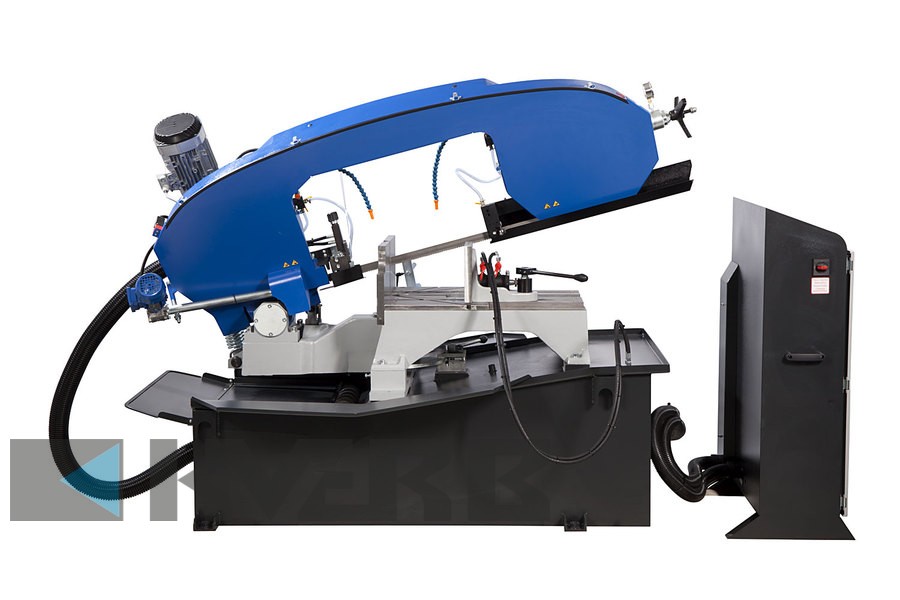

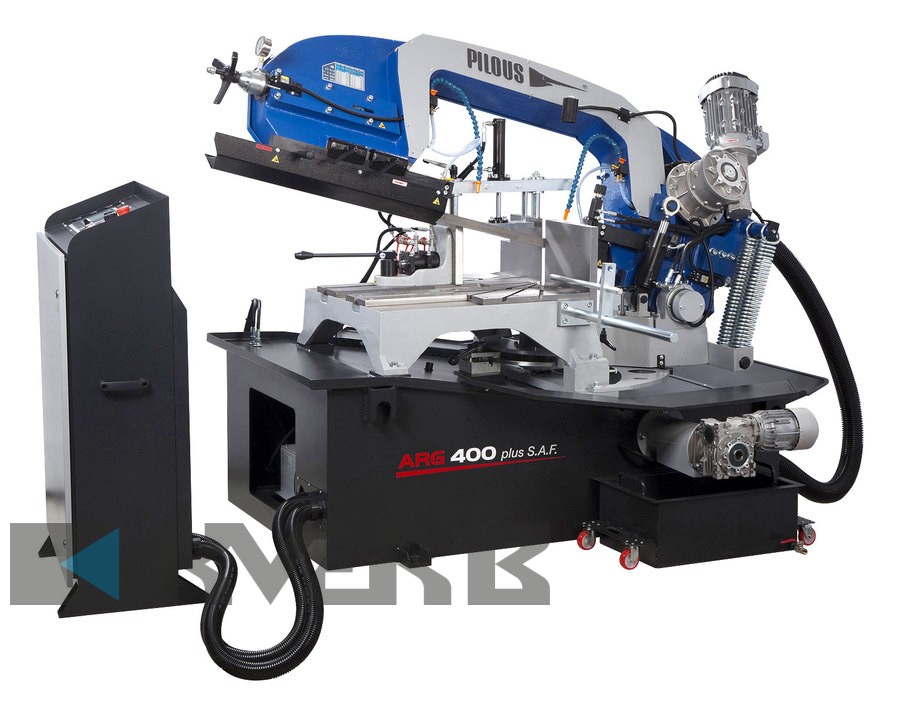

Band saw machine Pilous ARG 400 Plus S.A.F. is a high-precision machine designed for cutting various metals, including stainless and tool steel. The machine combines advanced technologies and a reliable construction, ensuring high performance and durability in challenging conditions.
This machine is suitable for enterprises working with large sections and hard materials. It is used in metalworking shops, factories producing metal structures, as well as for processing metal products in large and medium-sized batches. The machine ensures cutting accuracy for both thin and thick materials.
Technical specifications:
Massive gray cast iron construction for high rigidity and durability

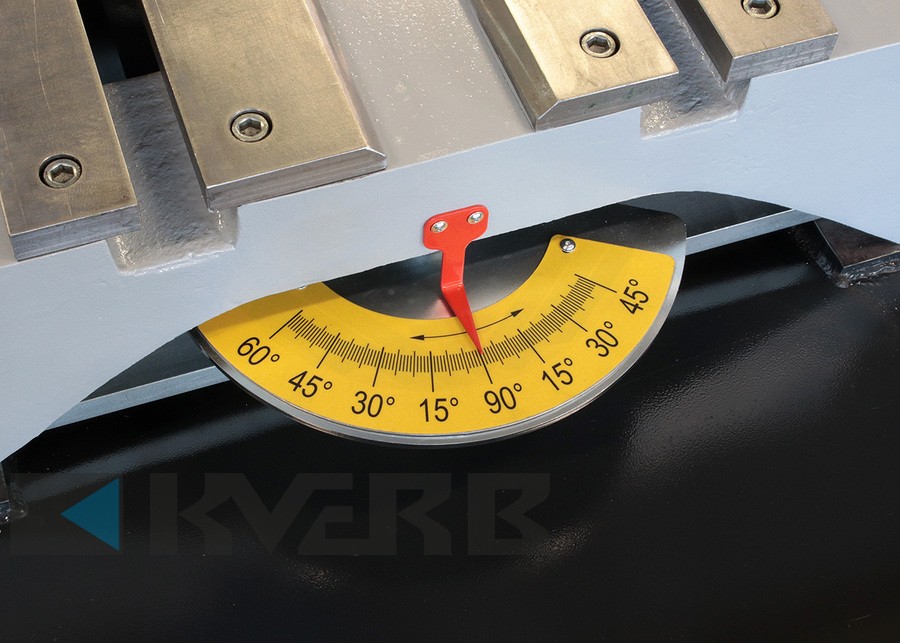

Cutting angle range: Saw tilt of 60° right and 45° left for versatility
Blade size: 34 x 1.1 mm for high precision
Hydraulic system: Adjusts clamping force to improve productivity, especially when working with hard materials

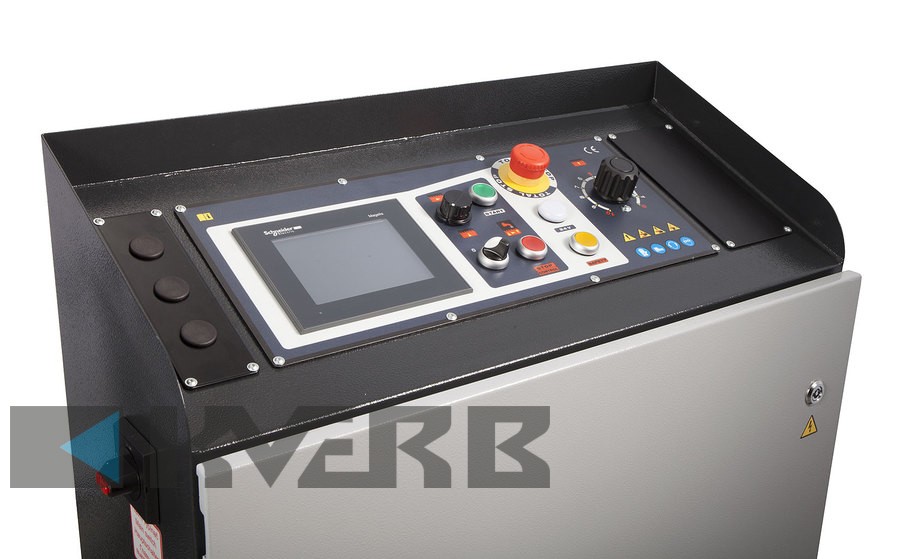

Touchscreen display for setting the saw arm height and monitoring the machine's condition
Effective cooling system with adjustable fluid flow to prevent overheating
Frequency converter: Regulates blade speed from 15 to 90 m/min for enhanced precision

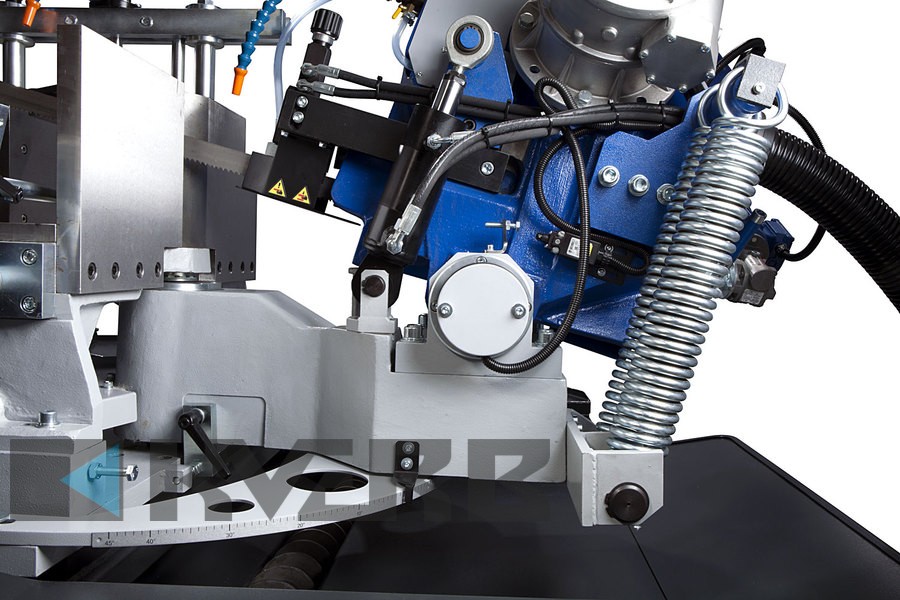

Bearing units on the rotating table for stable operation
Carbide guides and large wheels for long-term operation and cutting accuracy
Advantages and features:
Sturdy cast iron body withstands heavy loads, ensuring a long service life
Adjustable tilt angle and operational parameters for cutting precision
Suitable for cutting various metals, including stainless and tool steels
Easy access for maintenance and blade replacement
Automatic shutdown in case of blade breakage to prevent damage
You can buy band saw machine Pilous ARG 400 Plus S.A.F. at KVERB
We offer
Delivery in Ukraine
Official warranty and technical support
Professional consultation to help you choose the right equipment
Contact our managers now to get the best offer for the Pilous ARG 400 Plus S.A.F. band saw machine for your business!
This machine is suitable for enterprises working with large sections and hard materials. It is used in metalworking shops, factories producing metal structures, as well as for processing metal products in large and medium-sized batches. The machine ensures cutting accuracy for both thin and thick materials.
Technical specifications:
Massive gray cast iron construction for high rigidity and durability
Cutting angle range: Saw tilt of 60° right and 45° left for versatility
Blade size: 34 x 1.1 mm for high precision
Hydraulic system: Adjusts clamping force to improve productivity, especially when working with hard materials
Touchscreen display for setting the saw arm height and monitoring the machine's condition
Effective cooling system with adjustable fluid flow to prevent overheating
Frequency converter: Regulates blade speed from 15 to 90 m/min for enhanced precision
Bearing units on the rotating table for stable operation
Carbide guides and large wheels for long-term operation and cutting accuracy
Advantages and features:
Sturdy cast iron body withstands heavy loads, ensuring a long service life
Adjustable tilt angle and operational parameters for cutting precision
Suitable for cutting various metals, including stainless and tool steels
Easy access for maintenance and blade replacement
Automatic shutdown in case of blade breakage to prevent damage
You can buy band saw machine Pilous ARG 400 Plus S.A.F. at KVERB
We offer
Delivery in Ukraine
Official warranty and technical support
Professional consultation to help you choose the right equipment
Contact our managers now to get the best offer for the Pilous ARG 400 Plus S.A.F. band saw machine for your business!
Specifications Band saw machines Pilous ARG 400 plus S.A.F.
- Size of the tape cloth 4300 x 34 x 1.1 mm
- Type of saw frame lift. Semi-automatic
- Machine type Console
- The speed of the conveyor belt 15 – 90 m/min
- Vise table height 795 mm
- Main engine power 400 В / 50 Гц / 3 кВт
- Saw frame rotation range -45⁰ до 90⁰
- CCA tank size 35
- WEIGHT 1 225 kg
- LENGTH 1981 mm
- WIDTH 1494 mm
- HEIGHT 1564 mm
