Band saw machines Pilous ARG 1100 DC GR

Band saw machine Pilous ARG 1100 DC GR is high-performance equipment designed for precise and efficient cutting of flat metal materials such as metal grating and large-sized metal products. This machine provides only vertical cuts, making it ideal for working with large metal sheets and other materials in industrial environments.

This machine is perfect for enterprises operating in the metalworking industry, especially for those involved in cutting metal grating, large metal sheets, or other large and heavy metal products. It is ideal for productions where high cutting speed, precision, and equipment durability are required.

Technical specifications:

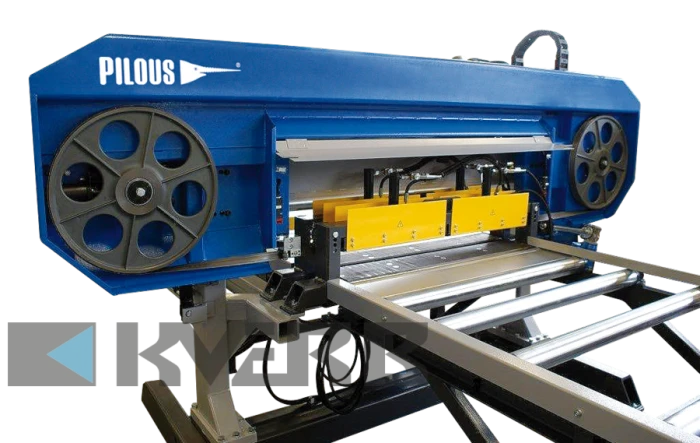

Construction and cutting system: The Pilous ARG 1100 DC GR band saw machine features a massive two-column frame that moves on linear guides, ensuring high system rigidity and cutting precision. Unlike standard band saw machines, this equipment can reach a saw speed of up to 200 m/min, making it ideal for industrial cutting of grating and other thick metal materials.

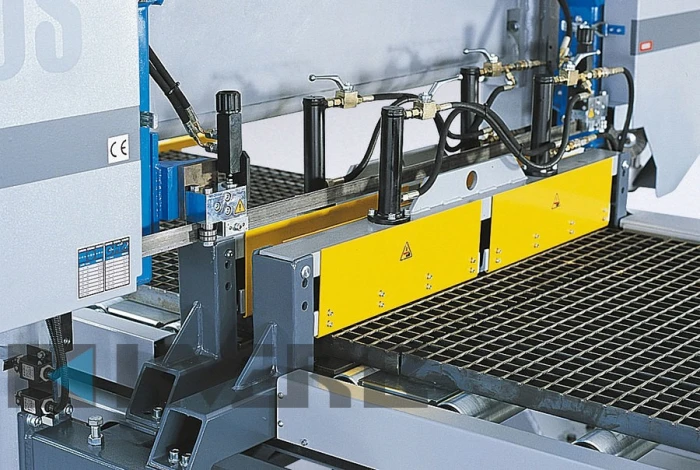

Material feed and clamping: For secure material clamping during operation, vertical clamps are provided to secure the material along the entire length of the cut. The clamps are equipped with replaceable rubber bands to minimize vibrations, improving cut quality and extending saw blade life.
Hydraulic unit: The machine is equipped with a powerful hydraulic unit that automatically controls all functions, such as material clamping, lifting the limiter on the conveyor, starting the saw, cutting, stopping the saw, returning the frame to its starting position, and unclamping the material.
Automatic pressure adjustment: Both saw guide blocks are equipped with an automatic pressure adjustment system, significantly improving cutting speed and precision and extending saw blade life.
Saw speed and blade tension: The machine supports saw speed adjustment from 50 m/min to 200 m/min via a frequency converter, optimizing performance depending on the material. Blade tension is adjusted using a manual hydraulic pump system with an indicator, ensuring precise tension control and monitoring.

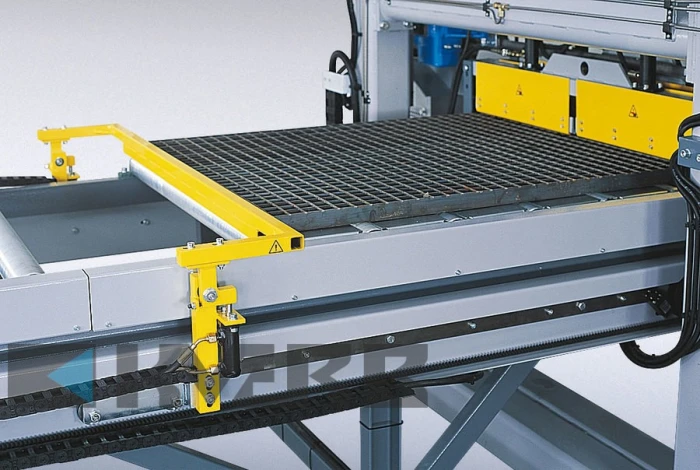

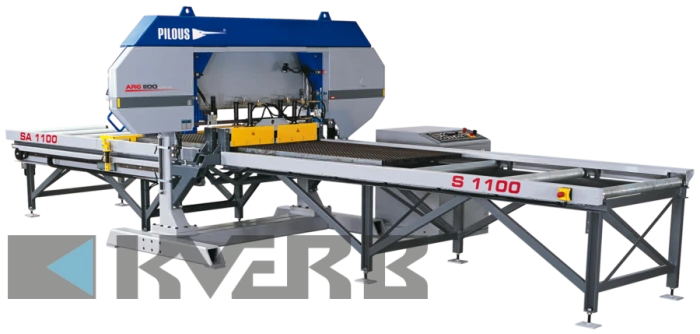

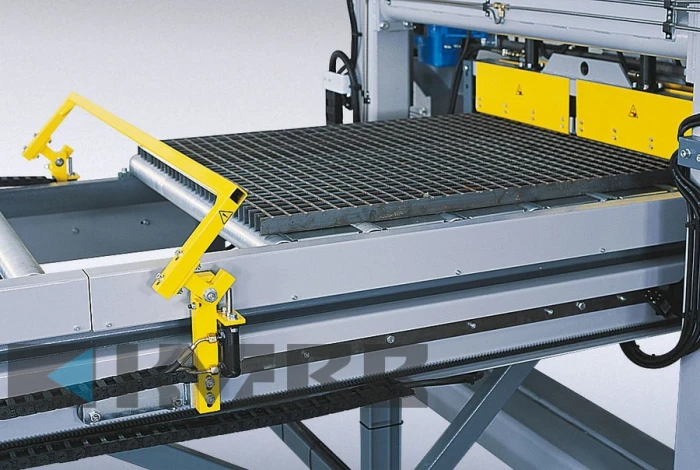

Conveyors: For easy and efficient handling of large materials, various models of conveyors are included, including motorized ones with length measurement systems, simplifying material feeding and increasing productivity.

Advantages and features:
High cutting speed and precision: The Pilous ARG 1100 DC GR band saw machine operates at high speeds of up to 200 m/min, making it ideal for cutting metals and other hard materials. This provides a significant advantage in production cycles where processing speed is essential.
Durability and reliability: Thanks to its powerful construction, working elements, and high-quality materials, the machine is highly wear-resistant, allowing it to operate in the most demanding conditions.
Vibration minimization and improved cut quality: The use of vertical clamps with rubber bands and automatic pressure regulation on the guides ensures minimal vibrations, significantly improving the precision and quality of each cut.

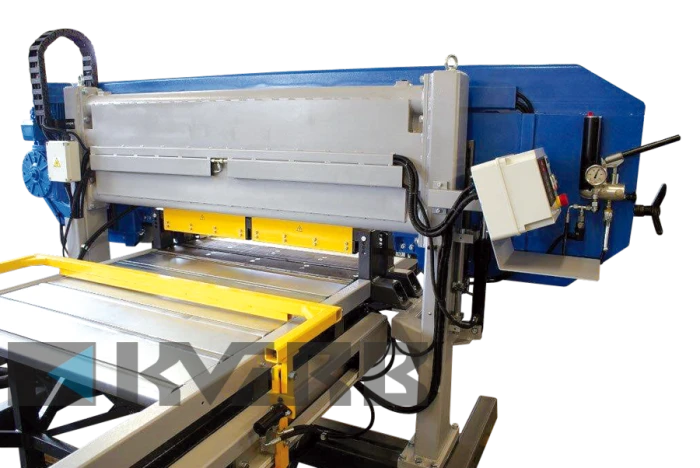

Convenient control: The entire control process is handled via a central control panel, making it easy to set up and manage all machine functions, including conveyor control, hydraulic functions, and saw speed.
Flexibility in operation: The ability to adjust the height and width of the cut allows for working with different sizes and types of materials. This makes the machine a versatile tool for various industrial needs.

You can buy the band saw machine Pilous ARG 1100 DC GR at KVERB.
We offer:
Delivery in Ukraine.
Official warranty and technical support.
Professional consultation to help you select the equipment that suits your needs.

Contact our managers right now to get the best offer for the band saw machine Pilous ARG 1100 DC GR for your business!
