Band saw machines Bomar Individual 520.360 DGH

SKU 101.439.B1

0 reviews

In stock

BOMAR

Shipping

Pickup (Self-pickup) (For free)
New POST (Up to 100 UAN)
Meest (Up to 100 UAN)

Payment

Payment upon receipt
Cash payment
Payment by bank details

Band saw machine Bomar Individual 520.360 DGH is an automatic type band saw machine specially designed for performing double-sided angular cuts. Thanks to its rigid frame construction, double linear guides, and modern technologies, the machine provides fast and precise cutting of both profile and solid materials.

Who is Bomar Individual 520.360 DGH suitable for:

Manufacturers of metal structures.
Heavy industry enterprises.
Workshops involved in the finishing of steel profiles.
Companies requiring precise cutting of angular blanks.
Organizations engaged in serial production.

Technical specifications of Bomar Individual 520.360 DGH:

Operating mode: automatic.
Machine type: horizontal band saw.
Cutting angle range: -60° to +60°.
Drive: power 3 kW, supply 3×400 V/50 Hz.
Saw blade speed: from 20 to 120 m/min.
Saw blade dimensions: 4,780×34×1.1 mm.
Cutting dimensions at 0°: 520×360 mm.
Material loading height: 770 mm.
Machine weight: 1400 kg.

Advantages and features of Bomar Individual 520.360 DGH:

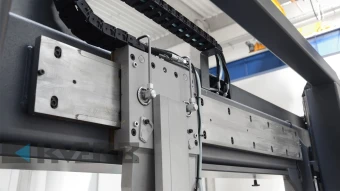

Rigid construction: the two-column design ensures stability and precision during operation.
Hydraulic clamping: automatic material clamping for reliable fixation.
Optimal cutting speed: frequency converter allows adjusting the blade speed depending on the material.
Effective chip removal system: synchronous brush ensures cleanliness of the working area.
Convenient control: control panel with free settings for maximum operator comfort.
Blade inclination: the cutting blade is tilted at 2°, which reduces cutting time and extends blade life.

You can buy band saw machine Bomar Individual 520.360 DGH at KVERB.
We offer:
Delivery throughout Ukraine.
Official warranty and support at all stages (from purchase to commissioning).
Consultation and assistance in selection.

Contact our managers now and get a great offer for the band saw machine Bomar Individual 520.360 DGH!

Specifications Band saw machines Bomar Individual 520.360 DGH
