Band saw machines Bomar Ergonomic 320.258 DGH
SKU 101.163.B1
0 reviews
In stock
BOMAR
Shipping
- Pickup (Self-pickup) (For free)
- New POST (Up to 100 UAN)
- Meest (Up to 100 UAN)
Payment
- Payment upon receipt
- Cash payment
- Payment by bank details
Band saw machine Bomar Ergonomic 320.258 DGH is a horizontal semi-automatic machine designed for precise cutting of metal blanks. Its durable cast iron construction and advanced technologies ensure reliable operation even under intensive use.
This machine is suitable for both straight and angular cuts with an angle range from -45° to +60°. It provides high precision in processing both profile and solid materials.
Technical specifications Bomar Ergonomic 320.258 DGH
Machine type: horizontal band saw machine
Working mode: semi-automatic
Angle cutting range: from -45° to +60°
Blade size: 2910x25(27)x0.9 mm
Blade speed: adjustable, from 20 to 120 m/min
Maximum cutting parameters:
At 0°: 258 mm (circle), 320x100 mm (rectangle), 250 mm (square)
At 45° right: 210 mm (circle), 210x100 mm (rectangle), 195 mm (square)
At 60° right: 135 mm (circle), 135x100 mm (rectangle), 170 mm (square)
At 45° left: 185 mm (circle), 195x100 mm (rectangle), 150 mm (square)
Machine dimensions: 1700x1480x2000 mm
Weight: 390 kg
Material loading height: 760 mm
Advantages of Bomar Ergonomic 320.258 DGH
The durable cast iron construction reduces vibrations, improving accuracy and longevity.
Hydraulic control ensures smooth clamping and saw movement, enhancing operational convenience.
The cutting angle is adjustable directly from the workstation, saving time.

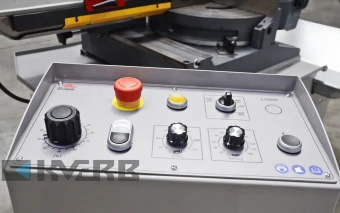

Convenient control panel with quick-access buttons.
The integrated cooling system extends the lifespan of the saw blade.
The machine can be complemented with accessories such as Handling System M roller conveyors for material feeding.
You can buy band saw machine Bomar Ergonomic 320.258 DGH at KVERB. We offer
Delivery throughout Ukraine
Official warranty and technical support at all stages, from purchase to commissioning
Professional consultation and assistance in selecting the right equipment
Contact our managers now to get the best offer for your business!
This machine is suitable for both straight and angular cuts with an angle range from -45° to +60°. It provides high precision in processing both profile and solid materials.
Technical specifications Bomar Ergonomic 320.258 DGH
Machine type: horizontal band saw machine
Working mode: semi-automatic
Angle cutting range: from -45° to +60°
Blade size: 2910x25(27)x0.9 mm
Blade speed: adjustable, from 20 to 120 m/min
Maximum cutting parameters:
At 0°: 258 mm (circle), 320x100 mm (rectangle), 250 mm (square)
At 45° right: 210 mm (circle), 210x100 mm (rectangle), 195 mm (square)
At 60° right: 135 mm (circle), 135x100 mm (rectangle), 170 mm (square)
At 45° left: 185 mm (circle), 195x100 mm (rectangle), 150 mm (square)
Machine dimensions: 1700x1480x2000 mm
Weight: 390 kg
Material loading height: 760 mm
Advantages of Bomar Ergonomic 320.258 DGH
The durable cast iron construction reduces vibrations, improving accuracy and longevity.
Hydraulic control ensures smooth clamping and saw movement, enhancing operational convenience.
The cutting angle is adjustable directly from the workstation, saving time.
Convenient control panel with quick-access buttons.
The integrated cooling system extends the lifespan of the saw blade.
The machine can be complemented with accessories such as Handling System M roller conveyors for material feeding.
You can buy band saw machine Bomar Ergonomic 320.258 DGH at KVERB. We offer
Delivery throughout Ukraine
Official warranty and technical support at all stages, from purchase to commissioning
Professional consultation and assistance in selecting the right equipment
Contact our managers now to get the best offer for your business!
Specifications Band saw machines Bomar Ergonomic 320.258 DGH
- Size of the tape cloth 2910x25(27)x0.9 mm
- Type of saw frame lift. Semi-automatic
- Machine type Console
- The speed of the conveyor belt 20 -120 m/min
- Vise table height 760 mm
- Main engine power 1.5 kW, 3x400 V/ 50 Hz
- Saw frame rotation range -45° to +60°
- Smallest safe workpiece diameter 20
- Weight 390 kg
- Length 1700 mm
- Width 1480 mm
- Height 2 000 mm
