Band saw machines Bomar AL 600 semi-automatic

Band saw machine Bomar AL 600 semi-automatic is designed for cutting profile and solid materials made of aluminum alloys, copper, and hard plastics. The machine is equipped with vertical pneumatic clamps for secure material fixation. The left clamping mechanism has a check valve to compensate for air pressure drops. Horizontal clamping devices can also be installed. The circular saw blade lowering is pneumohydraulically adjustable.

The machine is equipped with a rotating table that synchronously rotates with the blade, allowing cuts from both sides in a range from -60° to 60°. The operator manually adjusts the cutting angle using a scale for accuracy. The cutting height is adjusted from the control panel. The table features adjustable support slots for material stability. The dust extraction system maintains cleanliness at the workspace.

Bomar AL 600 semi-automatic is suitable for:

Small and medium businesses, workshops for metal and plastic processing.
Metallurgical and machine engineering enterprises.
Service centers processing custom materials.

For manufacturing:
Metal structures, profiles, frames.
Plastic parts.
Machine engineering components.
Automotive parts.
Construction and decorative elements.

Technical specifications:

Operating mode: semi-automatic.
Machine type: circular saw.
Cutting type: angle cut.
Cutting angle range: from -60° to 60°.
Drive power: 5.5 kW, 3x400 V/50 Hz.
Air pressure: 0.4 – 0.6 bar.
Saw speed: 2070 m/min.
Saw dimensions: Ø 600 x 30 x 4.6 mm.
Loading height: 1070 mm.
Minimum residual length: 50 mm.
Minimum cutting diameter: Ø 8 mm.

Advantages:

Ergonomic design for ease of operation.
Smooth cutting angle adjustment.

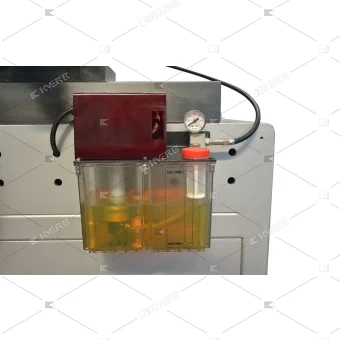

Micro-pump for blade lubrication, preventing overheating.
Electronic control of cover opening for enhanced safety.
Connection to the dust extraction system.
Manual table rotation for precise adjustment without additional tools.

You can buy band saw machine Bomar AL 600 semi-automatic at KVERB. We offer:
Delivery throughout Ukraine.
Official warranty and support at all stages.
Consultation and assistance in selection.

Contact our managers and get a special offer for the Bomar AL 600 semi-automatic!
