Metal cutting band saw OPTIsaw SD 310V

Metal cutting band saw OPTIsaw SD 310V is designed for precise and efficient cutting of various materials, including metals and aluminum. The device is equipped with modern components, ensuring stable operation and long service life.

The machine supports smoothly adjustable blade speed (15–100 m/min), allowing it to adapt to a wide range of materials. With an adjustable cutting angle from -60° to +45°, the model is versatile for performing complex geometric tasks. The package includes a bi-metal saw blade and a cooling system to prevent overheating.

OPTIsaw SD 310V is suitable for:
Industrial enterprises
Metallurgical workshops
Processing non-ferrous metals and aluminum profiles
Manufacturing metal structures and elements
Producing construction details
Working with metal and plastic materials

Technical specifications of OPTIsaw SD 310V:
Width without material stopper: 700 mm
Width with material stopper: 1300 mm
Height at the lower end position: 1600 mm
Height at the upper end position: 2000 mm
Length: 1850 mm
Weight: 380 kg
Motor power: 1.5 kW
Coolant pump power: 0.1 kW
Voltage: 400 V
Frequency: 50 Hz
Blade speed: 15–100 m/min
Blade length: 2750 mm
Blade width: 27 mm
Blade thickness: 0.9 mm
Cutting angle: from -60° to +45°
Hydraulic material feed
Smoothly adjustable material feed

Cutting areas:
At 0°: round 255 mm, square 255 mm, rectangle 200 x 270 mm
At -45°: round 190 mm, square 140 mm, rectangle 140 x 210 mm
At -60°: round 110 mm, square 110 mm, rectangle 110 x 210 mm
At +45°: round 190 mm, square 160 mm, rectangle 160 x 160 mm

Advantages and features of OPTIsaw SD 310V:
Quiet operation due to cast iron construction
High precision due to a stable design and minimal vibrations
Variable blade speed from 15 to 100 m/min for working with different materials
Dual mitre cutting with angles from -60° to +45°
Hydraulic system with smooth blade lifting adjustment

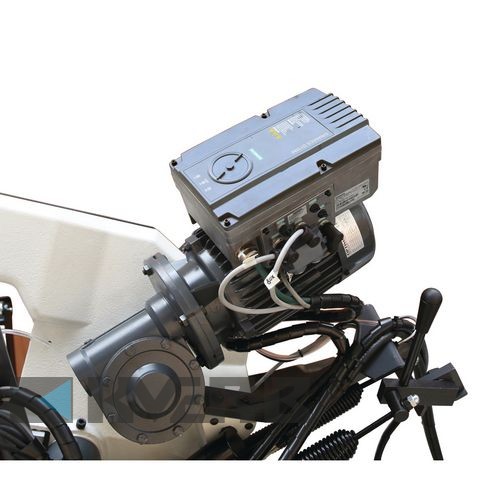

Inverter technology with high motor power even at low speeds
Micro switch for automatic stop
Bi-metal saw blade included

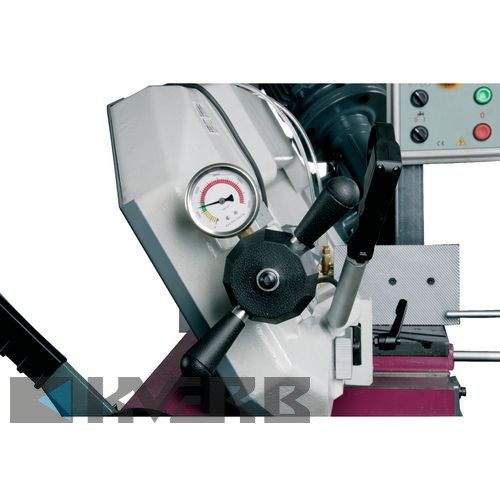

Easy blade tension adjustment via pressure gauge
Reliable roller support for precise cutting
Cooling system to prevent overheating
Safe chain with quick-stop mechanism

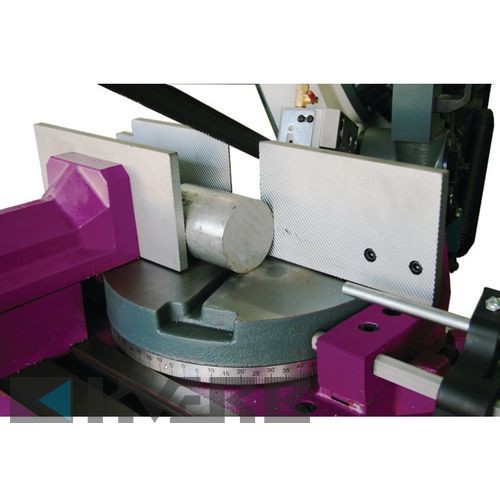

Vise with quick-release mechanism for securing workpieces
