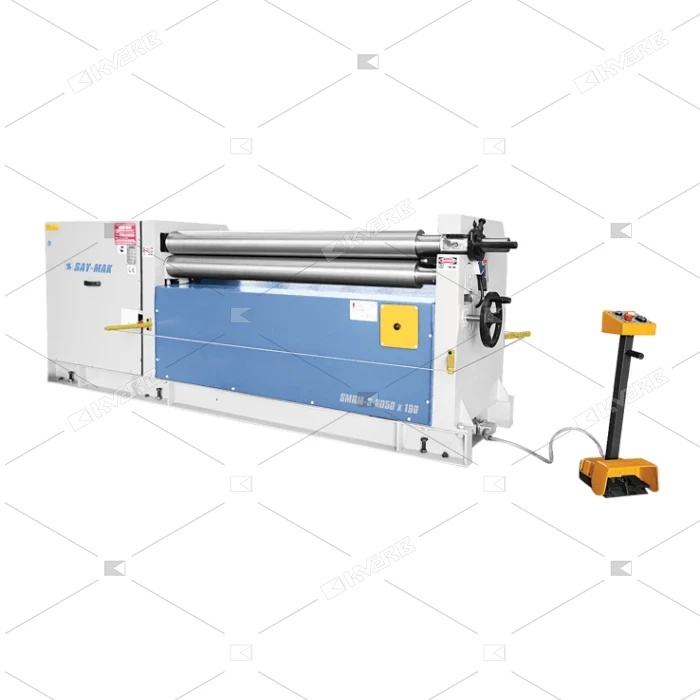

Metal plate rolling machine Say-Mak 2550x190

Metal plate rolling machine Say-Mak SMRM-S 2550x190 is a machine for bending sheet metal, compliant with European safety standards (CE). Thanks to its sturdy welded construction and hot-rolled rolls made from SAE 1050 CK 45 steel, it ensures stability, accuracy, and durability during operation.

The Say-Mak SMRM-S 2550x190 model is used for bending sheet metal into cylindrical and conical shapes. Its design allows for working with aluminum, carbon steel, and stainless steel, making it versatile for various manufacturing processes.

Applications for Say-Mak SMRM-S 2550x190:

Metalworking enterprises
Manufacturers of ventilation systems
Plants specializing in the production of tanks and pipes
Mechanical engineering companies
Producers of metal structures and casing components
Companies engaged in the production of cladding and decorative metal products
Shipbuilding and aircraft manufacturing plants
Producers of parts for construction and agricultural machinery

Technical specifications of Say-Mak SMRM-S 2550x190:

Working sheet length – 2550 mm
Pre-bending capacity – 4.0 mm x1.5/5.0 mm x5
Maximum bending thickness – 5 mm x1.5/6 mm x5
Upper and lower roll diameter – 190 mm
Minimum bending radius – 280 mm
Main motor power – 4.0 kW
Rear roll motor power – 1.5 kW
Dimensions (LxWxH) – 4700×950×1300 mm
Weight – 3400 kg

Key advantages:

Overload protection system prevents breakdowns and extends service life.
Mobile control panel allows convenient bending parameter adjustments.
Reinforced welded structure withstands heavy loads and ensures durability.
Conical bending device enables the creation of conical components.
Centralized lubrication system reduces friction and prolongs mechanism lifespan.
Brake motor ensures maximum bending accuracy and prevents errors during operation.
Manual drop-end mechanism simplifies the removal of finished products after processing.
Both rolls are equipped with a powerful planetary gearbox, ensuring even distribution of load during operation.

You can buy the Metal plate rolling machine Say-Mak SMRM-S 2550x190 at KVERB. We offer:

Delivery in Ukraine
Official warranty and technical support
Professional consultation to help you select the equipment that suits you best

Contact our managers right now to get the best offer for the Metal plate rolling machine Say-Mak SMRM-S 2550x190.
