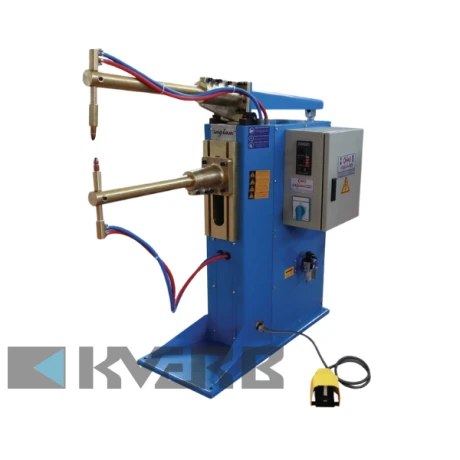

Spot welding machine PP030

Spot welding machine PP030 is a welding machine designed for spot welding metal parts. Thanks to the upper lever mechanism, it provides stable pressure and even heat distribution, ensuring high-quality welds. PP030 is ideal for companies in the metalworking, mechanical engineering, and metal construction industries.

The machine is used to join parts made of mild and stainless steel. With a power rating of 30 kVA and adjustable welding parameters, it works with various material thicknesses, delivering high-quality results.

PP030 is suitable for:

Metalworking enterprises
Automotive manufacturing
Metal construction manufacturing
Home appliance production
Workshops and repair enterprises

The machine is used for manufacturing enclosure parts and structures from steel and stainless steel.

Technical specifications of PP030:

Nominal power: 30 kVA (%50 duty cycle)
Continuous power: 22 kVA (%100 duty cycle)
Primary voltage: 400 V
Frequency: 50-60 Hz
Secondary voltage: 4-5 V
Fuse current: 100 A
Short-circuit current: 16 A
Lever length: 630 mm
Electrode pressure: from 50 to 325 kg
Number of adjustment steps: 1
Electrode travel: 60 mm
Air pressure: 3-8 bar
Cooling: water pressure – 5 bar, water consumption – 6 l/min
Maximum welding thickness (mild steel): 3 mm + 3 mm
Maximum welding thickness (stainless steel): 2 mm + 2 mm
Dimensions: 700 x 1350 x 1350 mm
Weight: 325 kg

Advantages:

High performance – 30 kVA power ensures effective welding of even thick materials.
Accuracy and stability – even pressure distribution ensures high-quality welds.
Convenient digital control – the control panel allows for easy adjustment of welding parameters to meet specific needs.
Energy efficiency – an economical mode reduces electricity consumption.
Durable construction – robust housing and quality materials ensure long equipment life.
Optimal cooling – water cooling system maintains stable operating temperature.

You can buy the spot welding machine PP030 from KVERB.
We offer:
Delivery in Ukraine.
Official warranty and technical support.
Professional consultation to help you choose the right equipment for your needs.
Contact our managers now to get the best offer on the spot welding machine PP030!
